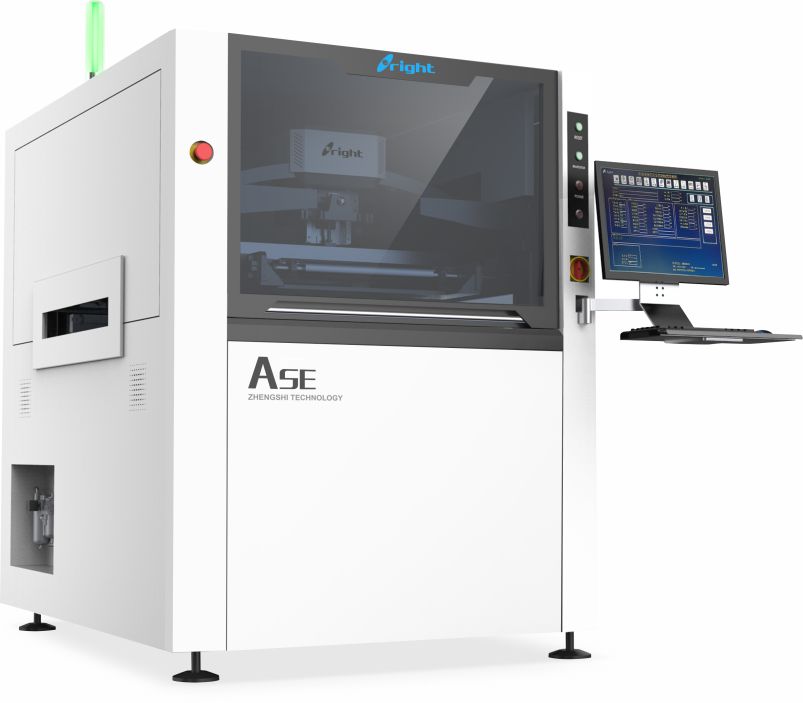

ASE full-auto stencil printer with vision alignment system and dual-rail design for medium-volume SMT production
Vision System Smart Printing 400x350mm

ASE Full-Auto Printer with Vision

Full-auto printer with vision system, max board size 400x350mm, floating intelligent print head, supports multiple rail directions.

Request Quote

Best For

  • Medium-volume SMT production lines
  • PCB sizes up to 400×350mm
  • Vision-aligned high-precision printing
  • Multi-rail direction production environments
  • EMS providers and contract manufacturers

Not Ideal For

  • Very large PCBs over 400×350mm (consider XSE or CP400)
  • Manual/semi-automatic prototyping (consider K3088)

Planning a full SMT line? Read: When a Full Compact SMT Line Makes More Sense — understand how the stencil printer, pick and place machine, and reflow oven work together as a system.

Key Features

  • Floating intelligent print head (3-channel independent closed-loop servo control)
  • Independent upper and lower vision recognition system
  • Supports multiple conveyor rail directions
  • Automatic cleaning, washing, and vacuum dust cleaning
  • Programmable floating pressure print head
  • SMEMA compliant

Specifications

ModelASE
Max PCB Size400mm x 350mm
Min PCB Size50mm x 50mm
PCB Thickness0.4mm~6mm
Max PCB Weight3Kg
Print Speed0~200mm/S
Print Pressure0.5kg-10Kg
Squeegee Length0.02mm-12mm
Max Bottom Clearance20mm
Conveyor Rail DirectionLeft-Right, Right-Left, Left-Right, Right-Left
Stencil Frame Size470mm x 370mm - 737mm x 737mm
Max Print Area450mm x 350mm
Power RequirementsAC220V±10%, 50/60Hz, 15A
Compressed Air Requirements4-6kg/cm2
Overall Dimensions1250mm x 1415mm x 1540mm
