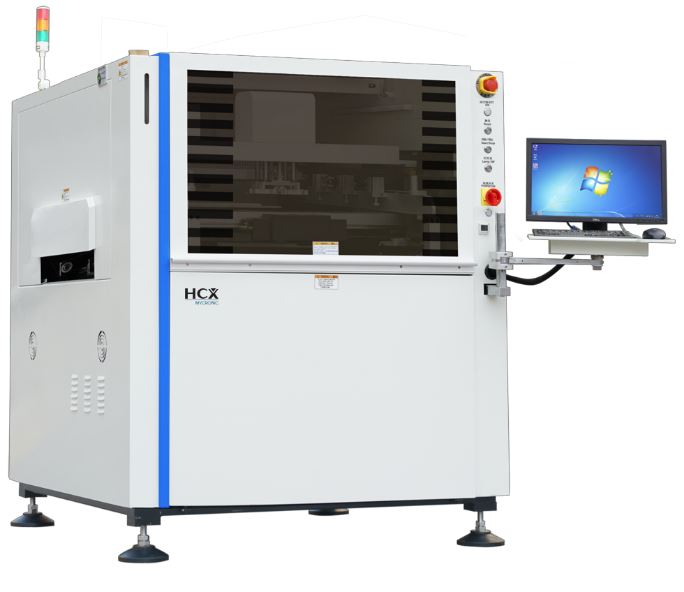

CP400 full-auto solder paste printer with CCD vision system and 450x350mm print area for high precision SMT
CCD Vision High Speed 450x350mm

CP400 Full-Auto Printer with Vision

Full-auto printer with high-performance CCD vision system, max print area 450x350mm, suitable for high-precision SMT production.

Request Quote

Best For

  • High-precision SMT production lines
  • PCB sizes up to 450×350mm
  • CCD vision-aligned printing requirements
  • Single or dual rail production modes
  • EMS providers needing flexible printing

Not Ideal For

  • PCBs over 450×350mm (consider XSE up to 600×400mm)
  • Manual or semi-automatic prototyping (consider K3088)

Key Features

  • High-precision CCD vision system
  • Cast iron frame intelligent print head
  • Single or dual rail printing mode
  • Programmable floating impression head
  • Maximum solder paste tray support
  • Automatic cleaning, washing, and vacuum dust cleaning

Specifications

ModelCP400
Max PCB Size400mm x 350mm
Min PCB Size50mm x 50mm
PCB Thickness0.4mm~6mm
Max PCB Weight3Kg
Print Speed0~200mm/S
Print Pressure0.5kg-10Kg
Squeegee Length0.02mm-12mm
Max Bottom Clearance20mm
Conveyor Rail DirectionLeft-Right, Right-Left
Vision Field6.4mm x 4.8mm
Stencil Frame Size470mm x 370mm - 737mm x 737mm
Max Print Area450mm x 350mm
Power RequirementsAC220V +/-10%, 50/60Hz, 15A
Max Overall Dimensions1250mm x 1415mm x 1540mm
