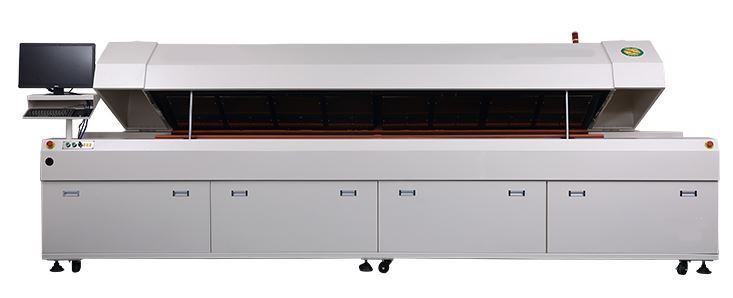

HW-R816 8-zone reflow oven with 3140mm heating length and 450mm mesh belt for large-scale lead-free production
High Volume 8 Zones Lead-Free

HW-R816 8-Zone Reflow Oven

8-zone reflow oven with top 8 bottom 8 zones, 3140mm heating zone length, 450mm wide mesh belt for large-scale lead-free production.

Request Quote

Best For

  • Large-scale SMT production
  • Lead-free soldering with demanding thermal profiles
  • EMS providers and contract manufacturers
  • High-throughput lines requiring 3140mm heating length
  • Wide PCB support up to 450mm belt width

Not Ideal For

  • Small batch or prototyping (consider HW-R306/R408)
  • Workshops with limited floor space (L4940×W1260×H1450mm)
  • Low-budget entry-level needs

Key Features

  • Top 8 + bottom 8 heating zone design
  • 3,140 mm ultra-long heating zone
  • 450 mm wide mesh belt conveyor
  • Supports lead-free and leaded soldering
  • 2–3 independent cooling zones + air cooling system
  • PID + SSR temperature control, ±1–2°C accuracy

Specifications

ModelHW-R816
Heating Zone CountTop 3+8 independent small-loop, bottom 3+8 independent small-loop
PCB Conveyor Speed0 to 0.8 m/min
Heating Zone Length3,140 mm
Temperature Accuracy±1–2°C (steady state)
Temperature RangeRoom temp to 400°C adjustable
Cooling Zones2–3 independent cooling zones + air cooling system
Cooling Zone Length600 mm + 350 mm
Mesh Belt Width450 mm
Rail Adjustment Range50 to 450 mm
Supported Solder TypeLead-free / leaded solder
Power Supply3-phase 380V 50Hz
Startup / Running Power45 KW / 8 KW
Overall DimensionsL4800 x W1100 x H1450 mm
Weight1,000 kg

Recommended SMT Line with HW-R816

High-Volume Production Line

Automatic stencil printer + HW-T8-72/80F + conveyor + HW-R816

Mass Production Line

Automatic stencil printer + HW-M8-102F + conveyor + HW-R816

Best for: Large-scale SMT production, lead-free soldering lines, high-volume LED manufacturing, automotive electronics, EMS mass production.
