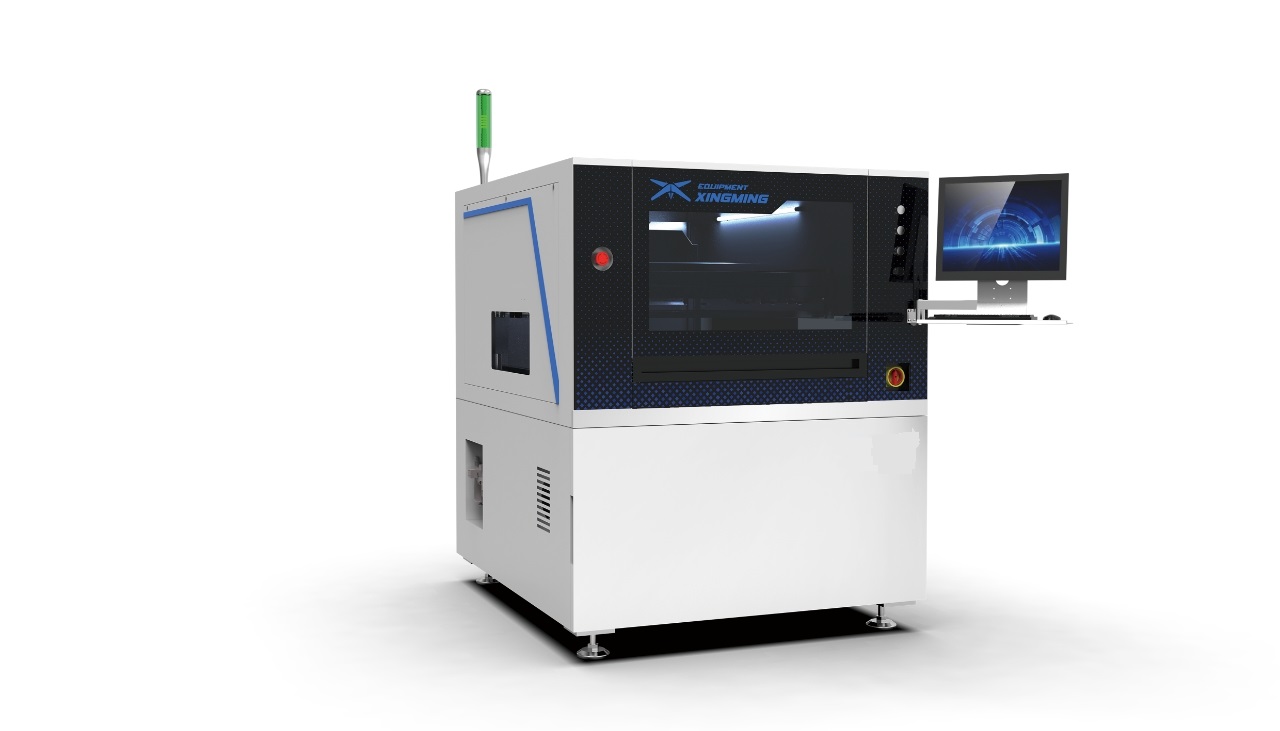

XSE automatic stencil printer with high precision repeatability for fine-pitch solder paste printing in SMT line
High Precision ±0.015mm Precision Full-Auto

XSE High Precision Auto Printer

High-precision automatic solder paste printer with ±0.015mm repeat accuracy, max PCB size 600x400mm, lifetime free software upgrades.

Request Quote

Best For

  • Ultra-high-precision printing (±0.015mm repeat accuracy)
  • Large PCB sizes up to 600×400mm
  • High-precision CCD image processing
  • Fine-pitch and high-density PCB printing
  • EMS providers and advanced manufacturing

Not Ideal For

  • Budget-conscious entry-level needs (consider ASE or K3088)
  • Low-volume prototyping (consider semi-automatic options)

Key Features

  • Repeat placement accuracy ±0.015mm
  • High-precision CCD image processing system
  • Windows XP operation interface
  • Lifetime free software upgrades
  • SMEMA connection standard
  • Standard 45° squeegee angle

Specifications

ModelXSE
Repeat Placement Precision±0.015mm
Print Precision±0.025mm
PCB DimensionsMin 60 x 50mm, Max 600 x 400mm
PCB Thickness0.4 ~ 6mm
PCB Weight≤3kg
Stencil Frame Size370 x 370mm ~ 600 x 800mm
Squeegee Pressure0.5~10Kg
Print Cycle<8s/pcs (3-step print with cleaning)
Squeegee AngleStandard 45°
Vision SystemHigh-precision CCD image processing system
Cleaning MethodTop, Bottom, Manual
PCB Transfer Height900±40mm
Air Pressure4~6 Kgf/cm2
Power SupplyAC: 220±10%, 50/60Hz, 2.5KW
