Conveyors & Accessories
Complete range of PCB conveyors, loaders, unloaders, and transfer units designed for seamless SMT production line integration.
PCB Loaders & Unloaders

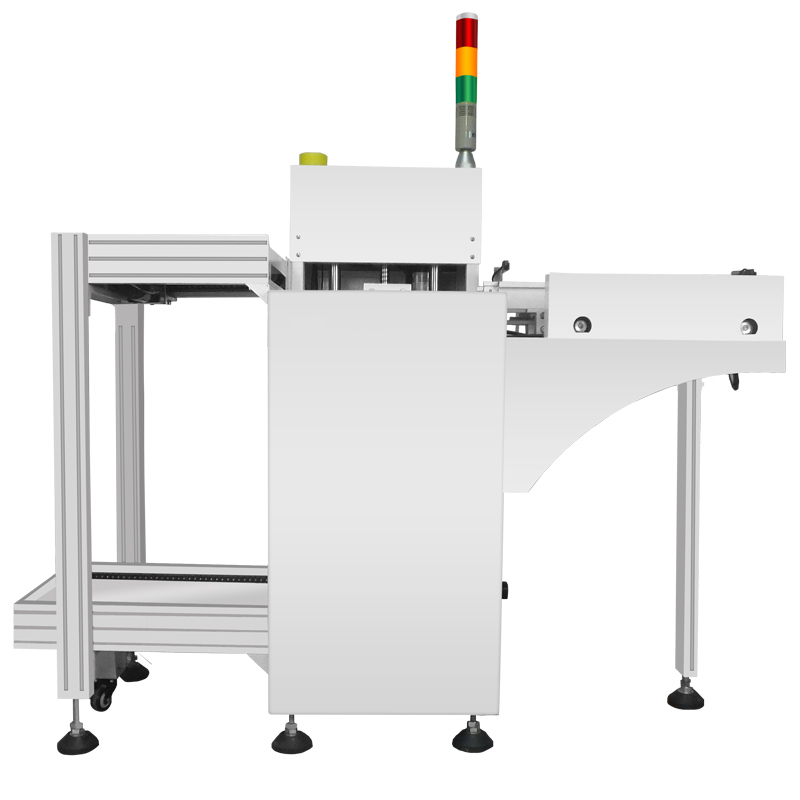

HW-S100 Automatic PCB Loader
Full-automatic PCB loader for seamless SMT line integration. Compact design with intelligent PLC control.
| Model | HW-S100 |
| Magazine Size | 355 x 320 x 563mm |
| PCB Size | 350 x (50-250)mm |
| PCB Thickness | 0.6-3.0mm |
| Dimension | 1150 x 720 x 1250mm |
| Weight | 180kg |
| Power | Single-phase 220V |
| Conveyor Height | 900±20mm |

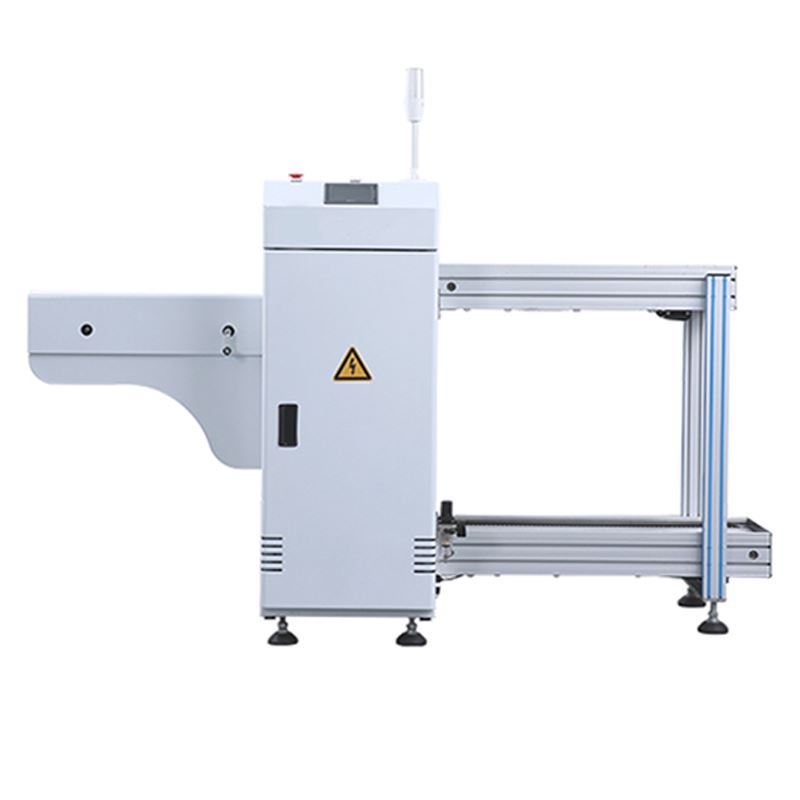

HW-X100 Automatic PCB Unloader
Full-automatic PCB unloader for efficient production flow. High reliability with Siemens PLC control.
| Model | HW-X100 |
| Magazine Size | 355 x 320 x 563mm |
| PCB Size | 350 x (50-250)mm |
| PCB Thickness | 0.6-3.0mm |
| Dimension | 1150 x 720 x 1250mm |
| Weight | 180kg |
| Power | Single-phase 220V |
| Lifting Step | 10/20/30/40/50mm adjustable |

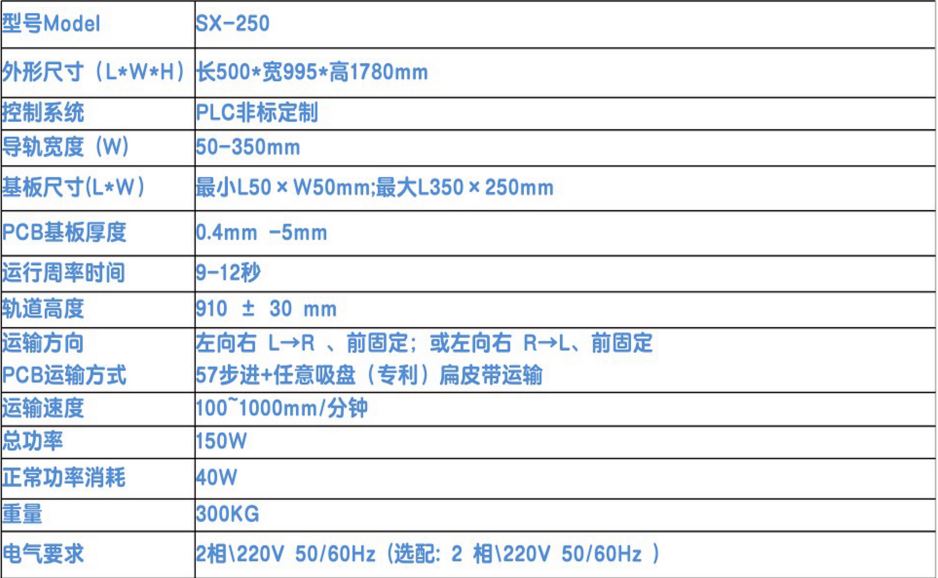

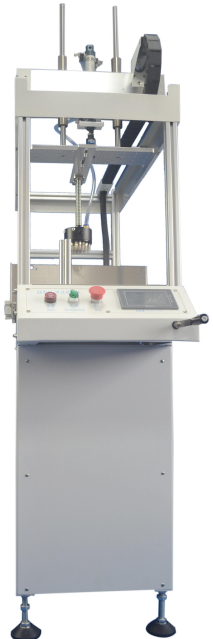

Mini PCB Suction Loader
Compact mini PCB loader with minimal footprint. Perfect for space-constrained production environments.
- Only 0.5M length - minimal space required
- Can add PCBs during operation - no downtime
- Dual motor lifting system
- Electric auto-width adjustment
- Power consumption under 100W

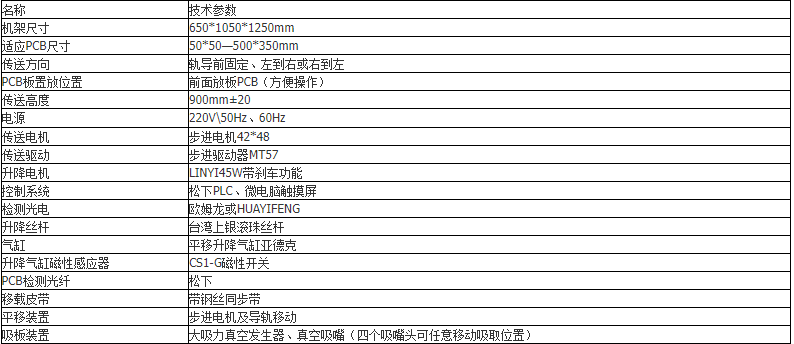

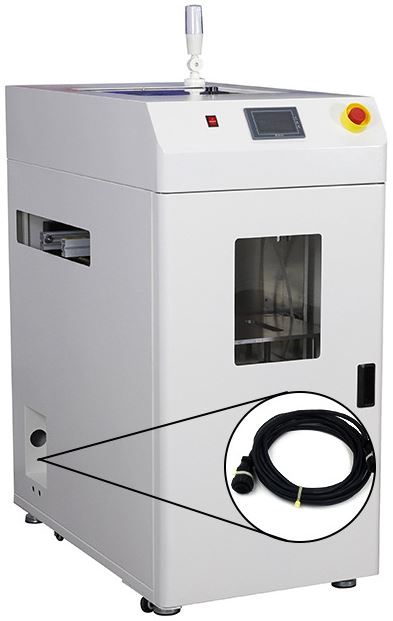

Vacuum PCB Loader
Vacuum-based PCB loader for sensitive boards. Gentle handling with precise vacuum suction system.
- Vacuum suction for secure PCB handling
- PLC+touch screen control
- Width adjustment up to 350mm
- Near-zero jam rate
PCB Routing & Cutting

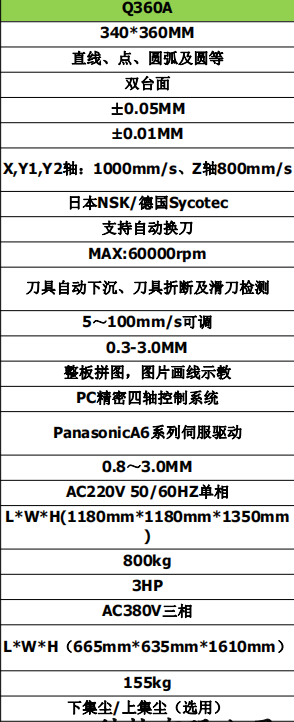

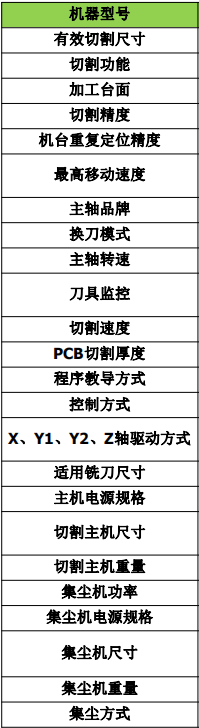

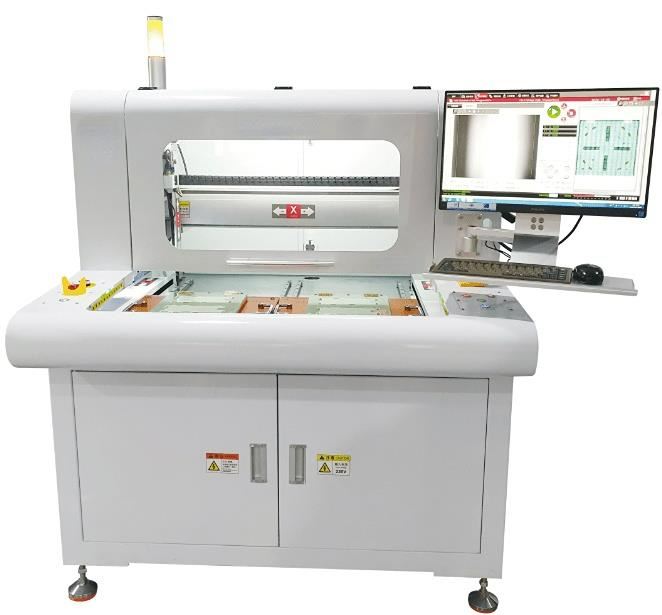

Offline PCB Router
Offline PCB router for depaneling after SMT assembly. Clean, precise cutting without stress on boards.
| Control System | Custom PLC |
| Track Width | 50-350mm |
| Board Size | Min L50 x W50mm; Max L390 x W330mm |
| PCB Thickness | 0.3mm - 5mm |
| Cycle Time | 10-15 seconds |
| Track Height | 920 ± 20mm |
| Dimension | L520 x W650 x H1550mm |
| Weight | 260kg |
| Power | 220V 50/60Hz (no air required) |
Transfer Units

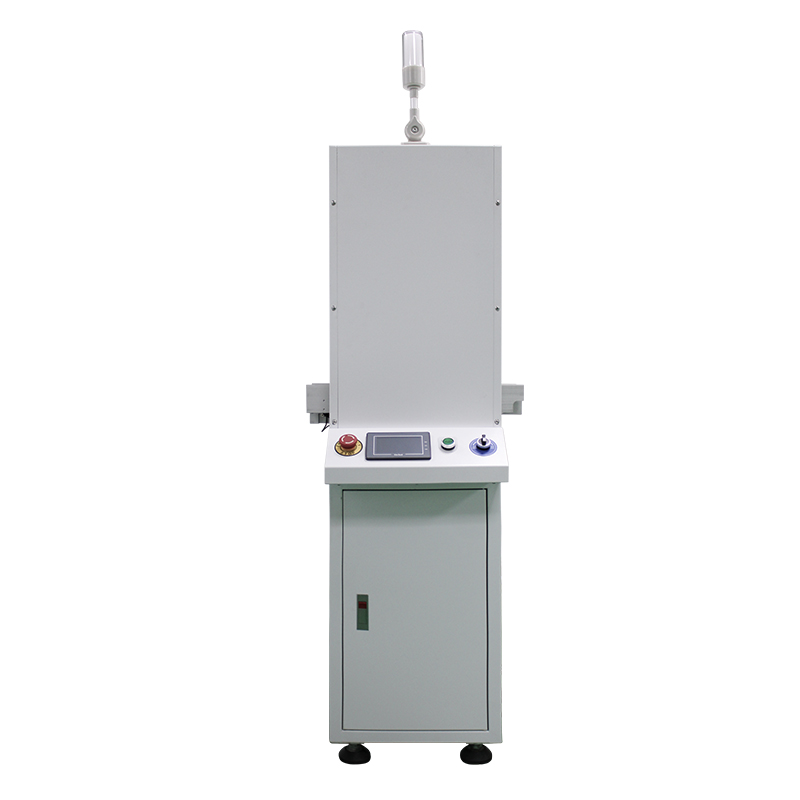

HW-L351 PCB Conveyor
PCB conveyor for smooth transfer between SMT equipment. Robust construction with precision alignment.
| Model | HW-L351 |
| Control System | Custom PLC |
| Track Width | 50-350mm |
| Board Size | Min L50 x W50mm; Max L390 x W330mm |
| PCB Thickness | 0.3mm - 5mm |
| Cycle Time | 10-15 seconds |
| Track Height | 920 ± 20mm |
| Dimension | L520 x W650 x H1550mm |
| Weight | 260kg |
| Power | 220V 50/60Hz |
Additional Equipment
Precision Assembly Equipment
High-precision equipment for quality-focused SMT production.

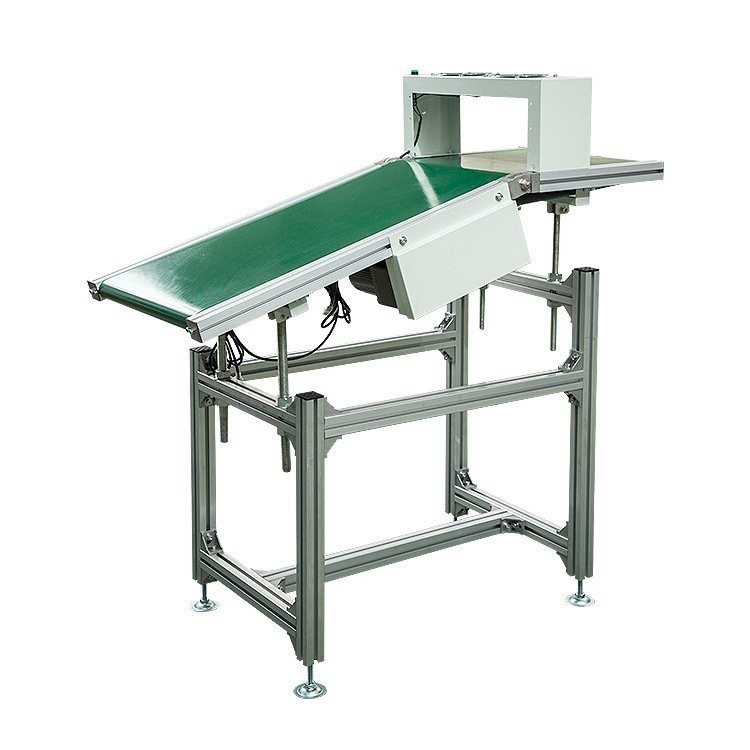

Automated Handling Systems
Automated solutions for efficient PCB handling and processing.

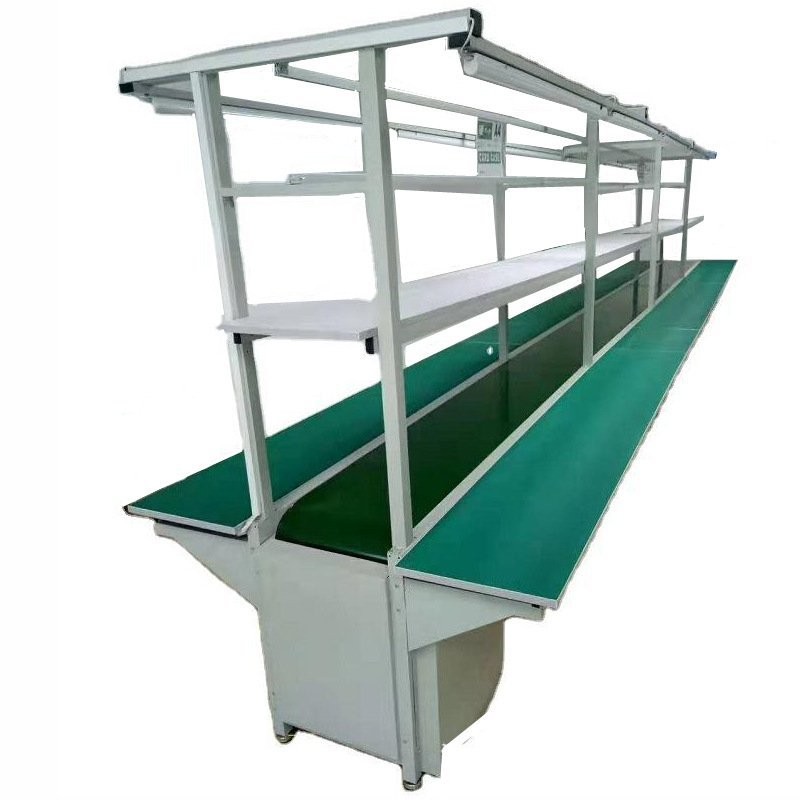

Quality Inspection Equipment
Advanced inspection systems for quality control in SMT production.

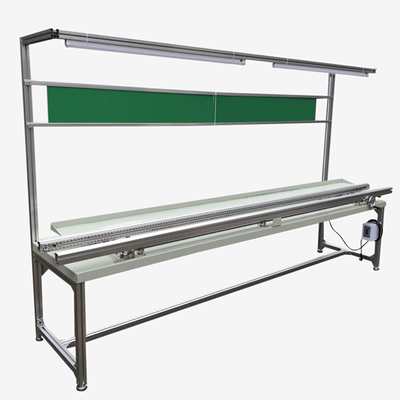

Production Line Components
Essential components and spare parts for SMT production lines.
