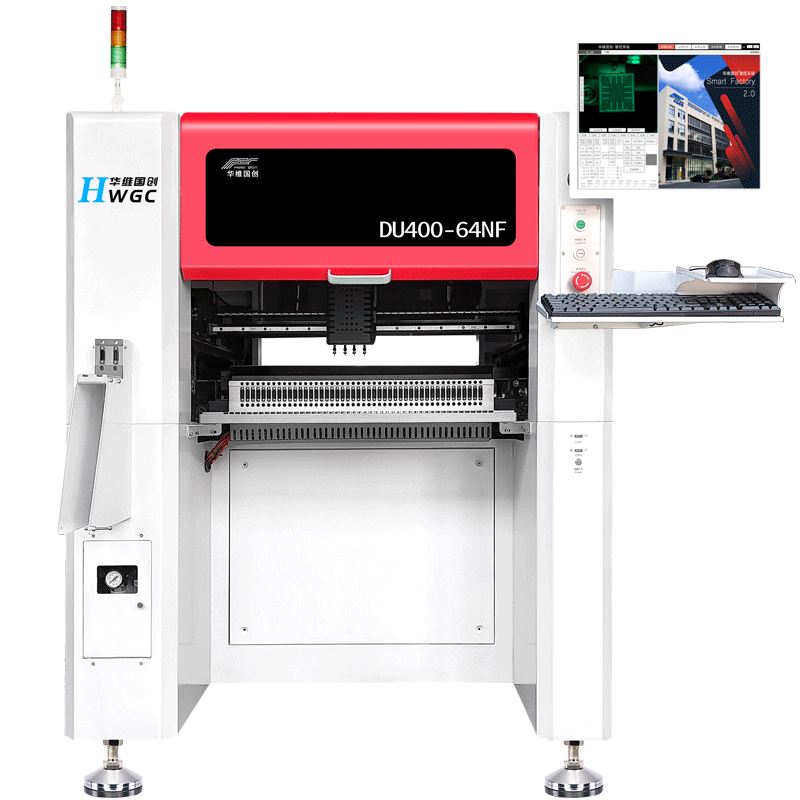

HW-DU400 universal 4-head pick and place machine with Intel processor and 64 feeders for medium-high volume
Universal 4 Heads 12K Pcs/h

HW-DU400 Universal Pick and Place Machine

Full-automatic 4-head universal placer with Intel high-performance processor, speed 12000 Pcs/h, 64 feeder positions for medium-high volume production.

Request Quote

Best For

  • Medium-volume production (12,000 CPH)
  • Universal component range including fine-pitch ICs
  • Growing factories scaling from small to medium batch
  • EMS providers needing flexible production
  • BOMs with 40–64 unique component types

Not Ideal For

  • Desktop-level prototyping (consider HW-T4 series)
  • Very high-speed mass production (consider HW-M8 or HW-T8)
  • Extremely complex BOMs needing 80+ feeders

Key Features

  • 4-head high-precision placement heads with simultaneous recognition
  • Intel high-performance processor industrial motherboard
  • 64 feeder positions (8mm tape to 3 inch IC tray)
  • Repeat placement precision: 0.05mm
  • AC servo motor drive system
  • Fully automatic PCB positioning

Specifications

ModelHW-DU400
Placement Heads4-head high-precision placement heads
Placement Speed12000 Pcs/h
Feeder Positions64 positions (8mm tape to 3 inch IC tray)
Repeat Placement Precision0.05mm
Positioning Accuracy0.01mm
PCB Placement Area50 x 50mm - 350 x 370mm
XY Stroke Range629mm x 679mm
Drive MotorAC servo motor
Vision System1x MARK camera, 1 high-speed recognition camera, 1 high-precision vision camera
Operating SystemWindows-based, self-developed SMT intelligent Operating System
Power Supply220V 50/60Hz
Average Power600W
Overall Dimensions1150 x 1300 x 1340mm
Equipment Weight438kg

Recommended SMT Line with HW-DU400

Medium-Volume Line

Semi-auto stencil printer + HW-DU400 + conveyor + HW-R408 reflow oven

Flexible Production Line

Automatic stencil printer + HW-DU400 + conveyor + HW-R612E reflow oven

Best for: Medium-volume SMT production, EMS providers, growing factories, flexible PCB assembly with universal component range.

Compare with Other Models

HW-T4 Series

For desktop-level prototyping and small batch production

HW-M8-102F

For higher feeder demand (102 feeders) and faster placement (26,000 CPH)

HW-T6-64

For 6-head placement with 64 feeders at 9,000–10,000 CPH

HW-T8-72/80F

For higher-output production with 8 heads, 72/80 feeders and 12,000 CPH

Ready to Get Your SMT Line Configuration?

Send us the following information, and we will recommend a suitable SMT line configuration for your specific production needs.

Information to Include in Your Inquiry:

PCB size — max dimensions you need to handle
BOM / component count — how many unique part types
Minimum package size — e.g., 0201, 0402, QFP, BGA
Feeder demand — estimated number of feeders needed
Monthly output — target PCBs per month
Application — LED, industrial control, medical, consumer, etc.
Available space — workshop dimensions
Target budget — approximate investment range
Send Your PCB & BOM for a Recommendation
