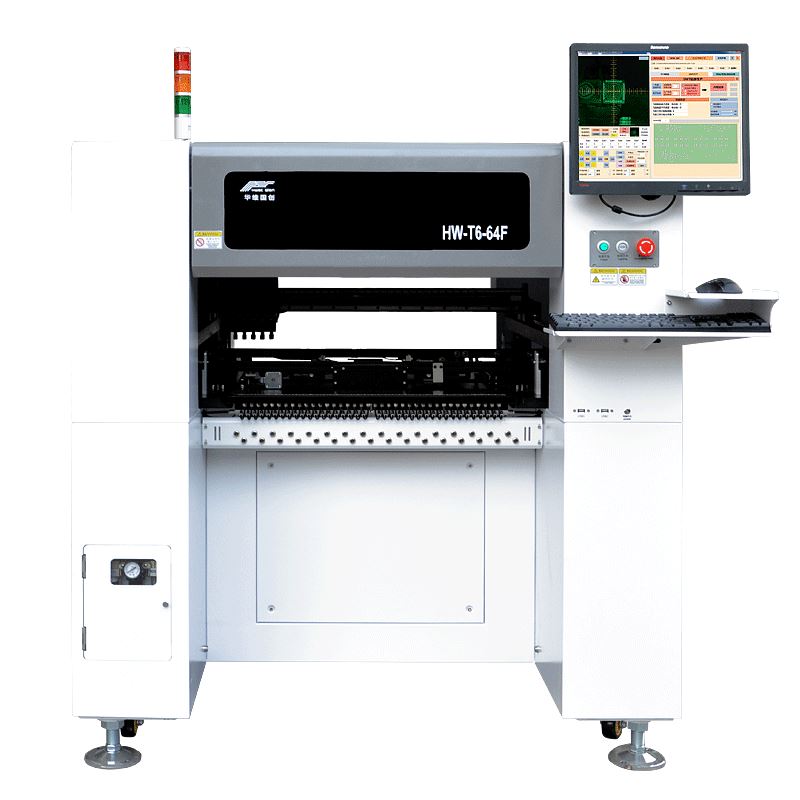

HW-T6-64 6-head high speed intelligent pick and place machine with 64 feeder stations for medium volume
High Speed 6 Heads 10,000 Pcs/h

HW-T6-64 6-Head High Speed Placer

Full-automatic 6-head high-speed intelligent placer with 6 high-precision placement heads, speed 9000-10000 Pcs/h for medium-high volume production.

Request Quote

Best For

  • Medium-to-high volume production (9,000–10,000 CPH)
  • Growing factories scaling from small to medium batch
  • BOMs with 40–64 unique component types
  • Industrial control, medical, and automotive electronics
  • Upgrading from desktop to compact industrial level

Not Ideal For

  • R&D prototyping (consider HW-T4 series)
  • Very high-speed mass production (consider HW-M8 or HW-T8)
  • Extremely complex BOMs needing 80+ feeders

Is the HW-T6-64 the right step up from a desktop machine? Read: Desktop vs Compact Industrial Pick and Place Machine — understand when to move from desktop to production-grade equipment.

Key Features

  • 6 high-precision placement heads
  • Intel high-performance industrial motherboard
  • 64 feeder positions
  • Repeat placement precision: 0.05mm
  • High-performance DSP drive system
  • Anti-static circuit (10,000V ESD protection)

Specifications

ModelHW-T6-64
Placement Heads6 high-precision placement heads
Placement Speed9,000–10,000 Pcs/h
Feeder Positions64 (8mm tape to 32mm IC)
Repeat Placement Precision0.05mm
Positioning Accuracy0.01mm
PCB Placement Area50 x 50mm – 500 x 370mm
XY Stroke Range629mm x 679mm
Drive MotorAC servo motor
Vision System1 MARK camera, 4 high-speed precision recognition, 1 high-precision camera
Operating SystemWindows with proprietary SMT intelligent OS
Power Supply220V 50/60Hz
Average Power600W
Overall Dimensions1316 x 1360 x 1340mm
Equipment Weight438kg

Recommended SMT Line with HW-T6-64

Medium-Volume Line

Semi-auto stencil printer + HW-T6-64 + conveyor + HW-R408 reflow oven

High-Mix Production Line

Automatic stencil printer + HW-T6-64 + conveyor + HW-R612E reflow oven

Best for: Medium-volume SMT production, LED assembly, consumer electronics, industrial control boards, contract manufacturing.

Compare with Other Models

HW-T4 Series

For desktop-level prototyping and small batch production

HW-T8-72/80F

For higher output with 8 heads, 72/80 feeders and 12,000 CPH

HW-DU400

For universal placement with 64 feeders and 12,000 CPH

HW-M8-102F

For high-speed mass production with 102 feeders at 26,000 CPH

Ready to Get Your SMT Line Configuration?

Send us the following information, and we will recommend a suitable SMT line configuration for your specific production needs.

Information to Include in Your Inquiry:

PCB size — max dimensions you need to handle
BOM / component count — how many unique part types
Minimum package size — e.g., 0201, 0402, QFP, BGA
Feeder demand — estimated number of feeders needed
Monthly output — target PCBs per month
Application — LED, industrial control, medical, consumer, etc.
Available space — workshop dimensions
Target budget — approximate investment range
Send Your PCB & BOM for a Recommendation
