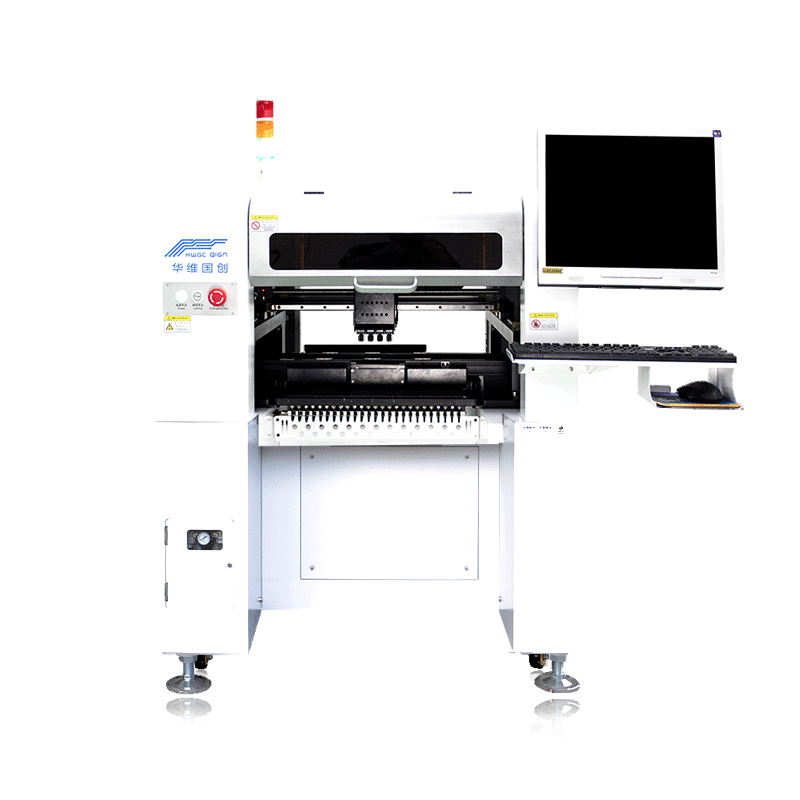

HW-M8-102F high speed pick and place machine with 2 parallel heads 8 nozzles 102 feeders for mass production
High Speed 8 Heads 26K Pcs/h

HW-M8-102F High-Speed Pick and Place Machine

High-speed placer with 2 parallel placement heads (8 nozzles total), speed up to 20000-26000 Pcs/h, 102 feeder positions for large-scale production.

Request Quote

Best For

  • Medium-to-large volume SMT production
  • Complex BOMs requiring 60–102 feeder positions
  • High-speed placement (20,000–26,000 CPH)
  • EMS providers and contract manufacturers
  • Consumer electronics and industrial control PCBs

Not Ideal For

  • R&D prototyping (overkill for very low volumes)
  • Small workshops with very limited floor space (1750×1360mm)
  • Extremely low budget entry-level needs

Is this the right speed tier for your production? Read: Is Pick and Place Speed the Most Important Factor? — learn why real output depends on workflow, not just CPH.

With 102 feeder positions, how many do you actually need? Read: How Many Feeders Do You Really Need for SMT Production?

Key Features

  • 2 parallel heads with 4 nozzles each
  • Intel industrial high-performance processor
  • 102 electronic feeder positions (8mm tape to 3 inch IC tray)
  • Repeat placement precision: 0.05mm
  • Under-track exchange servo motor drive
  • 3-stage pure iron permanent magnet machine flat structure

Specifications

ModelHW-M8-102F
Placement Heads2 parallel heads with 4 nozzles each
Placement Speed20000-26000 Pcs/h
Feeder Positions102 positions (8mm tape to 3 inch IC tray)
Repeat Placement Precision0.05mm
Positioning Accuracy0.01mm
PCB Placement Area50 x 50mm - 330 x 360mm
XY Stroke Range423mm x 734mm
Drive MotorUnder-track AC servo motor
XY Drive RailTBI linear guide + THK precision guide
Vision SystemSelf-developed 2x MARK cameras, 1 high-speed recognition camera, 1 high-precision vision camera
Operating SystemWindows 10, Self-developed SMT intelligent Operating System
Power Supply220V 50/60Hz
Average Power2300W
Overall Dimensions1750 x 1360 x 1440mm
Equipment Weight1200kg

Recommended SMT Line with HW-M8-102F

High-Speed Production Line

Automatic stencil printer + HW-M8-102F + conveyor + HW-R612E reflow oven

Large-Scale Mass Production Line

Automatic stencil printer + HW-M8-102F + conveyor + HW-R816 reflow oven

Best for: Large-scale SMT production, high-volume PCB assembly, LED manufacturing, consumer electronics mass production, EMS contract manufacturing.

Compare with Other Models

HW-T8-72/80F

For 8-head placement with 72/80 feeders at 12,000 CPH

HW-DU400

For medium-volume universal placement with 64 feeders and 12,000 CPH

HW-T6-64

For 6-head placement with 64 feeders at 9,000–10,000 CPH

HW-T4 Series

For desktop-level prototyping and small batch production
