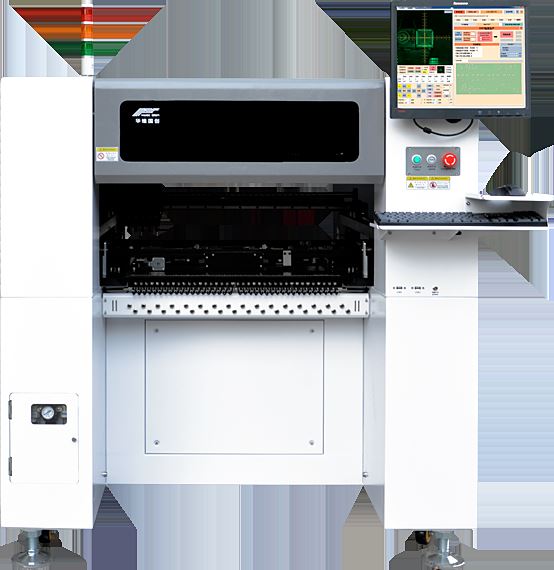

HW-T8-72/80F 8-head high speed pick and place machine with 80 feeder positions for large-scale production

High Speed 8 Heads 12,000 Pcs/h

HW-T8-72/80F 8-Head High Speed Placer

Full-automatic 8-head high-speed intelligent placer with 8 high-precision placement heads, speed 10000-12000 Pcs/h for large-scale high-speed production.

Request Quote

Best For

Higher-output production (10,000–12,000 CPH)
Complex BOMs requiring 50–80 feeder positions
Frequent job changeovers (high feeder capacity reduces swaps)
EMS providers and contract manufacturers
LED lighting, consumer electronics, industrial control

Not Ideal For

Desktop prototyping and very small batches (consider HW-T4)
Ultra-high-speed mass production (consider HW-M8 at 26,000 CPH)
Small workshops with very tight space budgets

Is high speed right for your high-mix production? Read: Is Pick and Place Speed the Most Important Factor? — for frequent changeovers, stability may matter more than CPH.

Planning for high changeover frequency? Read: How Changeover Frequency Should Influence SMT Line Design

Key Features

8 high-precision placement heads
Intel high-performance industrial motherboard
72/80 feeder positions
Repeat placement precision: 0.05mm
High-performance DSP drive system
Electric rail adjustment for fast changeover

Specifications

Model	HW-T8-72/80F
Placement Heads	8 high-precision placement heads
Placement Speed	10,000–12,000 Pcs/h
Feeder Positions	72/80 (8mm tape to 32mm IC)
Repeat Placement Precision	0.05mm
Positioning Accuracy	0.01mm
PCB Placement Area	50 x 50mm – 500 x 450mm (72F) / 500 x 370mm (80F)
XY Stroke Range	629mm x 679mm
Drive Motor	AC servo motor
Vision System	1 MARK camera, 4 high-speed precision recognition, 1 high-precision camera
Operating System	Windows with proprietary SMT intelligent OS
Power Supply	220V 50/60Hz
Average Power	800W
Overall Dimensions	1410 x 1500 x 1540mm
Equipment Weight	(72F) 750kg / (80F) 850kg
